USSmart Pro 2200VA Rt Line-int 8OUT

Requiring only two rack spaces (2U) in a standard rack enclosure, Tripp Lite's SMART2200RM2U SmartPro® UPS System protects connected equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Featuring advanced automatic voltage regulation, it provides regulated 100/110/120V (selectable) output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts. The SMART2200RM2U features three individually controllable outlets that can reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert UPS monitoring and unattended shutdown software provides management support for an unlimited number of network UPS systems.

Key Features

SMART2200RM2U UPS System Offers: Reliable protection for rackmount servers, telecom systems and more Advanced line-interactive operation corrects brownouts and overvoltages 8 AC outlets (3 individually controllable) Included PowerAlert software for complete network power management and control $250,000 Ultimate Lifetime Insurance; 2-year warranty

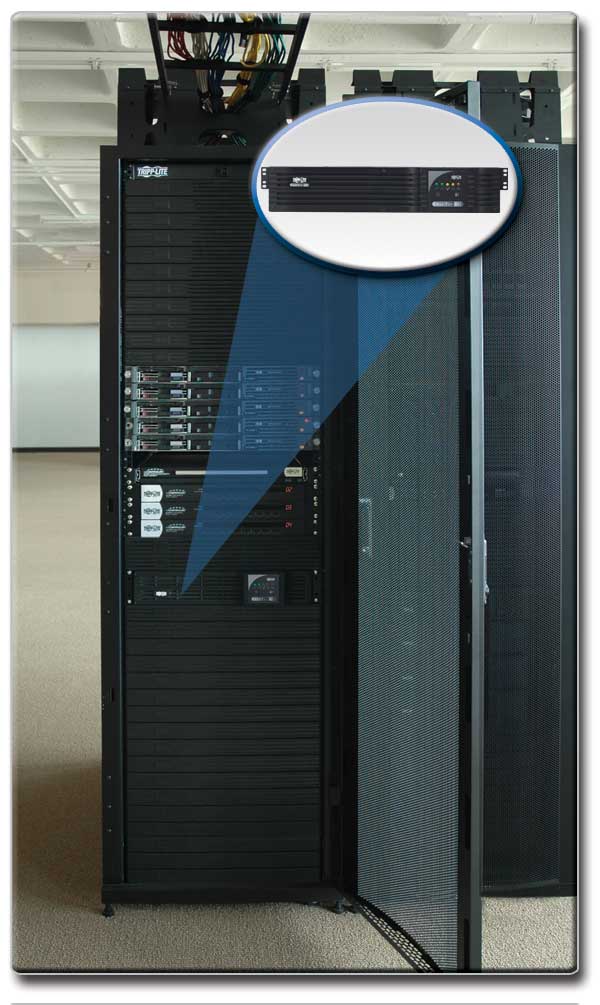

Ideal for Protection of Data Center/Network Rackmount Equipment
Click here for a larger image

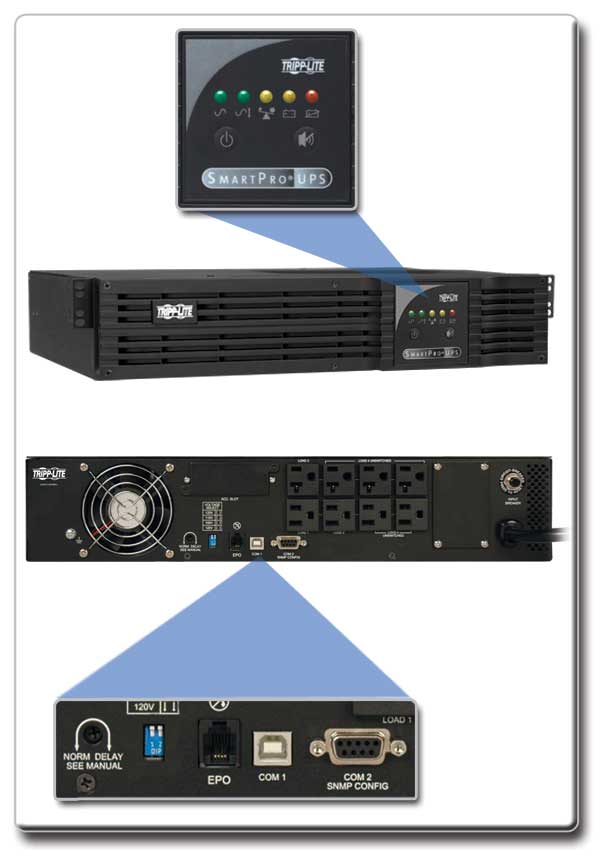

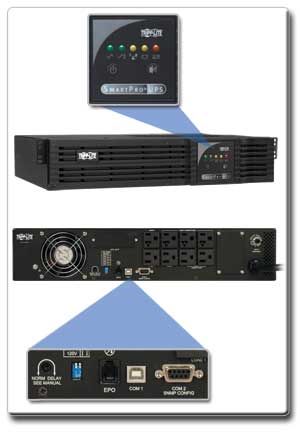

USB/DB9/EPO Ports and LEDs
Click here for a larger image

Ideal for Protection of Data Center/Network Rackmount Equipment

The SMART2200RM2U provides advanced automatic voltage regulation, reliable battery backup and comprehensive power management capability in just 2U of rack space. Featuring eight outlets and USB/DB9 ports, the SMART2200RM2U offers a complete power protection solution for protection for servers, storage devices and telecom equipment.

Advanced Automatic Voltage Regulation (AVR)

Advanced AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by brownouts (low-voltage conditions) and overvoltages. The SMART2200RM2U corrects brownouts as low as 83V and overvoltages as high as 145V to a nominal 100/110/120V (selectable), providing safe computer-grade power to all connected components without consuming backup battery power needed to support equipment through blackouts.

Controllable Outlets

The SMART2200RM2U includes an integrated switched PDU with three outlets that are individually controllable via a software interface for remote reboot of locked-up equipment or load shedding to maximize battery backup time for mission-critical equipment.

Reliable Battery Backup

UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SMART2200RM2U features a large internal battery that provides 5 min. of battery support for a full load (1920 watts) and 13 min. for a half-load (960 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.

Controllable Outlets

The SMART2200RM2U includes an integrated switched PDU with three outlets that are individually controllable via a software interface for remote reboot of locked-up equipment or load shedding to maximize battery backup time for mission-critical equipment.

PowerAlert

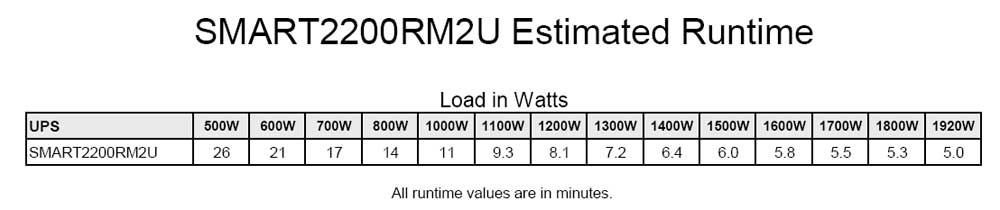

SMART2200RM2U Runtime Chart
Click here for a larger image

Highly Efficient Operation Reduces BTU Output

The SMART2200RM2U features high-efficiency operation—up to 95%—that can significantly reduce a facility's energy costs by minimizing heat output, lowering cooling requirements and reducing the consumption of electricity.

Surge Suppression

A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SMART2200RM2U features a 570-joule surge suppression rating to protect connected components and data from the harmful effects of power surges.

EMI/RFI Line Noise Filtering

Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART2200RM2U incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.

USB/DB9 Ports, SNMP Capability and Included PowerAlert Software

The SMART2200RM2U features a USB port and a DB9 port (cables included). Used with Tripp Lite's included PowerAlert software these communication ports provide comprehensive network power monitoring and control. Capabilities include UPS and line power status messaging (on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity), timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices. The SMART2200RM2U also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network.

Front-Panel LED Display

The SMART2200RM2U features an array of five front-panel LEDs that show line power, battery power, AVR, overload and replace battery status.

Controllable Load Banks

The SMART2200RM2U includes three outlets that are individually controllable via a software interface to reboot locked-up equipment or shed nonessential loads to maximize battery backup time for mission-critical equipment.

Versatile Installation Options

The SMART2200RM2U requires only 2U of rack space in a standard 4-post rack enclosure (mounting accessories included). It can also be installed in a 2-post rack using the optional 2POSTRMKITWM accessory, or in an upright tower configuration with the optional 2-9USTAND accessory.

Ultimate Peace of Mind

The SMART2200RM2U comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment and a 2-year warranty.

Technical Specifications

Tripp Lite SMART2200RM2U SmartPro® UPS System

Click here for a larger image

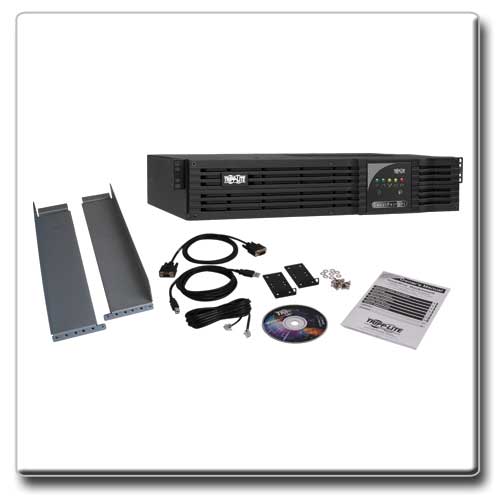

What's in the Box

• SMART2200RM2U UPS System
• PowerAlert Software CD
• 1 x 6-ft. USB Cable
• 1 x 6-ft. DB9 Cable
• 1 x 6-ft. EPO Cable (RJ11)
• 4-Post Rackmounting Hardware
