Elegoo MEGA 2560 R3 Board ATmega2560 ATMEGA16U2 + USB Cable for Arduino
Purchase options and add-ons
| Brand | Elegoo |
| Model name | EL-CB-003 |
| Memory storage capacity | 256 KB |
| Connectivity technology | USB |
| Included components | Mega Controller Board |
| Operating system | Windows 10 Home |
| CPU manufacturer | AMD |
| Wireless communication standard | Bluetooth |
| Compatible devices | Personal Computer |
| RAM memory technology | DDR |
About this item
- The mega is 100 percent compatible with Arduino and most shields designed for the Arduino Mega2560 R3
- The chip is Atmega2560-16au and Atmega16u2, same with the official version
- Stronger reset circuit. Use 5.5 * 2.1Mm dc barrel jack (compatible with 5.5 * 2.5Mm dc barrel jack)
- It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started
Frequently bought together

Customers who viewed this item also viewed
From the brand
-
ELEGOO STEM kits provide all the necessary components, sensors, wires, and boards for you to get started with programming, learning electronics, and creating IoT projects. We strive our best to make STEM education easy to learn and accessible to the young generation.
-
How we get our start?
Chris, the founder of ELEGOO, found out that most enterprises in the STEM industry focused on the hardware of open-source electronics and did not have tools to create a complete product by combining electronic hardware and structural shells.
What makes our products unique?
We have excellent R&D team, constantly upgrading and improving products, and after-sales service team for quick support.
What problem are we solving?
100% compatible with Arduino, ELEGOO's kits are best-practice for beginners who have no appropriate technical tools to learn about electronics.
-
-
-
-
-
From the manufacturer
ELEGOO Mega R3
ELEGOOO Mega R3 is an ATmega+2560 micro-controller board. It would be an intelligent choice of board for 3D printers, robotics projects and more other projects with 54 digital I/O pins (of which 15 can be used as PWM outputs), 16 analog inputs and a larger space for your sketch.
Product Details
|
|
|
|
|---|---|---|
Extra Points:Besides the 54 digital I/O pins and 16 analog inputs, it also has 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It provides everything needed to support the micro-controller. You will simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. |
Simplification and Security:The ATmega+2560 on the Elegoo Mega comes preprogrammed with a bootloader that allows you to upload new code to it without the use of an external hardware programmer. The Mega R3 has a re-settable fuse that protects your computer's USB ports from shorts and over-current. Although most computers provide their own internal protection, the fuse provides an extra layer of protection. If more than 500 MA is applied to the USB port, the fuse will automatically break the connection until the short or overload is removed. |
Memory Store:The ATmega+2560 of ELEGOO Mega R3 Controller Board has 256 KB of flash memory for storing code (of which 8 KB is used for the bootloader), 8 KB of Spram and 4 KB of EEPROM (which can be read and written with the Eeprom library). |
Diverse Power Methods:
The ELEGOO Mega R3 can be powered via the USB connection or with an external power supply. The power source is selected automatically. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board's power jack. Leads from a battery can be inserted in the GND and Vin pin headers of the POWER connector.
Technical Specification:
Microcontroller: ATmega+2560
Operating Voltage: 5V ; Input: Voltage (recommended):7-9V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16 DC
Current per I/O Pin: 40 mA ; DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 8 KB used by bootloader
SRAM: 8 KB EEPROM: 4 KB Clock Speed: 16 MHz LED_BUILTIN: 13
Length: 101.5 mm Width: 53.3 mm Weight: 34 g
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| ELEGOO Penguin Bot Biped Robot Kit | ELEGOO Tumbller Self-Blancing Robot Car Kit Compatible with Arduino | ELEGOO UNO Project Smart Robot Car Kit V 4.0 Compatible with Arduino | Elegoo UNO R3 Project Complete Starter Kit with Tutorial Compatible with Arduino | Elegoo Mega Project The Most Complete Starter Kit w/Tutorial | Elegoo UNO Project Super Starter Kit with Tutorial Compatible with Arduino | |
| Customer Reviews |
— |
— |
— |
4.7 out of 5 stars
2,757
|
4.6 out of 5 stars
6,869
|
4.6 out of 5 stars
14,339
|
| Price | — | — | — | $118.68$118.68 | $94.99$94.99 | $41.99$41.99 |
| Controller Board | NANO | NANO | UNO R3 | UNO R3 | MEGA | UNO R3 |
| Compatibility with Arduino | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Projects Tutorial Included | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Assembly Requirement | ✓ | ✓ | ✓ | No | No | No |
| Reasons to Buy | Specific-designed Control Board; Adorable Head Covers | Stand up by itself, Obstacle-Avoidance, Auto-follow | ELEGOO Elegookit APP; FPV Mode; Obstacle Avoidance; Line Tracking Mode | Tutorial of 33 Projects, Complete Stater Kit with UNO R3 | Tutorial of 33 Projects, Powerful Mega R3 Control Board | Tutorial of 24 Projects, Cost-effetive Starter Kit |
Looking for specific info?
Product description
We have the manufacture factory, making productions and selling by ourselves. So we can control the quality of our productions by ourselves for you. We'd like to receive your valuable suggestions for our products and make your idea come true.
This version is optimized in the original version, mainly for customers under the functional requirements for product quality and high case designed both to ensure consistent and compatible with the original, but also easy to use.
Microcontroller: ATmega2560 Operating Voltage: 5V Input: Voltage(recommended) :7-12V Input Voltage (limits) : 6-20V Digital I/O Pins: 54 (of which 15 provide PWM output) Analog Input Pins: 16 DC Current per I/O Pin: 40 mA DC Current for 3.3V Pin: 50 mA Flash Memory: 256 KB of which 8 KB used by bootloader SRAM: 8 KB EEPROM: 4 KB Clock Speed: 16 MHz
Package includes: 1 x Mega 2560 ATmega2560-16AU Board (Arduino-compatible) 1 x USB cable.
Product information
Technical Details
Additional Information
| Date First Available | April 21 2018 |
|---|---|
| Customer Reviews |
4.7 out of 5 stars |
| Best Sellers Rank | #5,896 in Grocery & Gourmet Food (See Top 100 in Grocery & Gourmet Food) #22 in Pickles |
| Is discontinued by manufacturer | No |
Feedback
Customer reviews
Reviews with images
-
Top reviews
Top reviews from Canada
There was a problem filtering reviews right now. Please try again later.
Highly recommended.

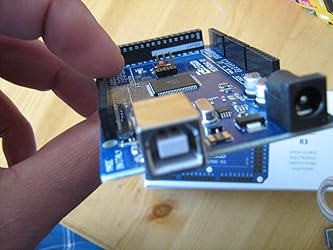

the board itself is just as shown on the picture, all the pin numbers are ritten in white on the connector (very clean and clear),the soldering are perfect and the overall look of the board is particularly badass.
on the 3 board one of the cable was defective, thus i wrote to the seller and in ruffly 3 days i've received a feedback from the seller and agreed in an arrangement to get a replacing parts.
nice-looking packaging;
reasonable price (only in case if it worked)
fast free delivery;
cons:

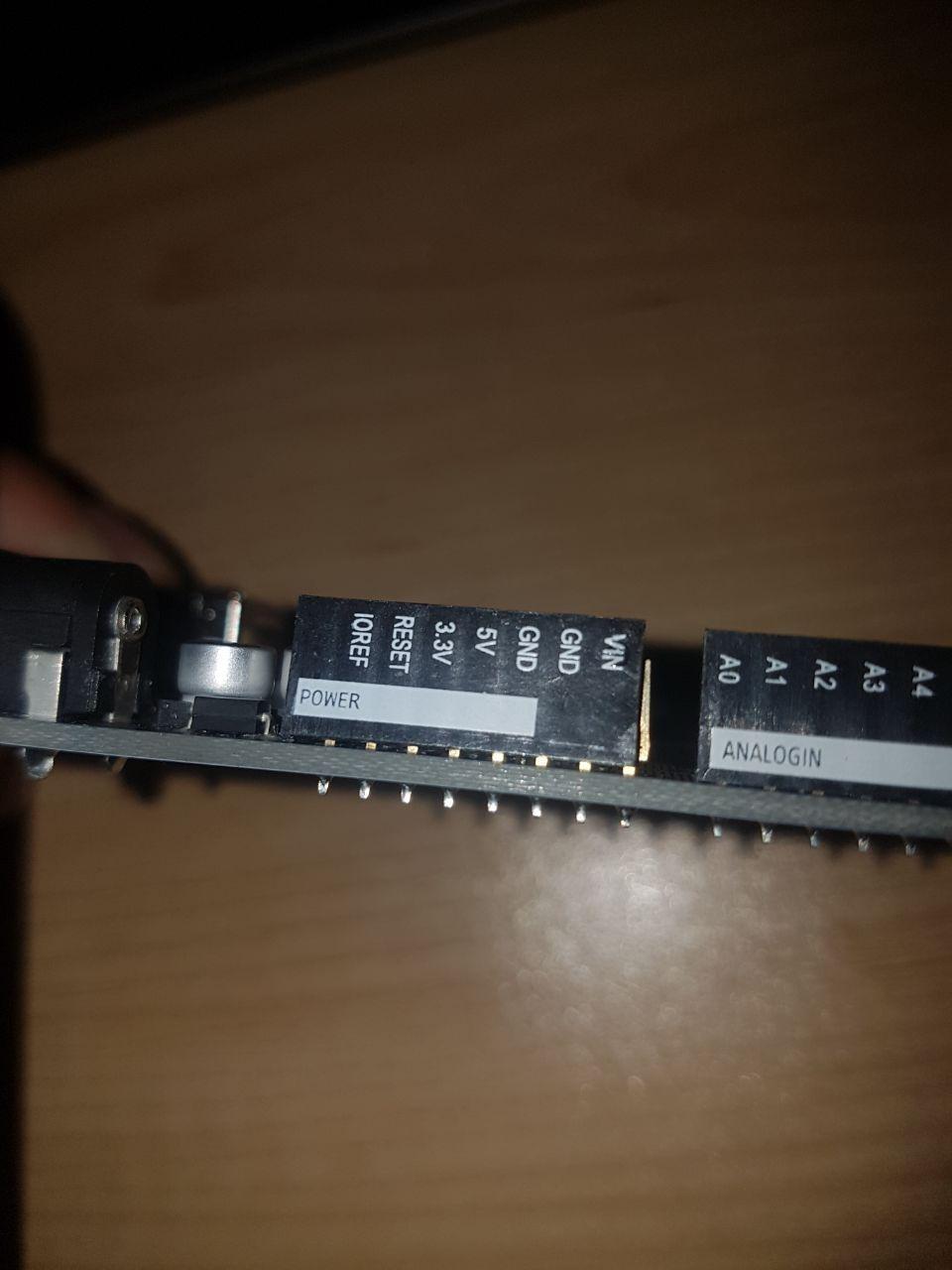

low quality of soldering (In my case the wire literally sticks out of the board as it can be seen from a picture) // fixed
Voltage on 3.3v pin is actually 5v!!!
Verdict: There are many good reviews about this board. Probably it's just my particular board was bad?
for those who are considering purchasing this board. BUY AT YOUR OWN RISK!!! I think I should have gotten an original one.
EDIT: After repositioning the pins, it is now fully functional. +1 star
nice-looking packaging;
reasonable price (only in case if it worked)
fast free delivery;
cons:
low quality of soldering (In my case the wire literally sticks out of the board as it can be seen from a picture) // fixed
Voltage on 3.3v pin is actually 5v!!!
Verdict: There are many good reviews about this board. Probably it's just my particular board was bad?
for those who are considering purchasing this board. BUY AT YOUR OWN RISK!!! I think I should have gotten an original one.
EDIT: After repositioning the pins, it is now fully functional. +1 star
