●Up to 150MHz Bandwidth 1GSa/s sample rate ●7''TFT-LCD display,8*18 grids ●Channels: 2CH+1EXT ●1GSa/s samplinge rate, 2Mpts memory depth ●6 digits hardware frequency counter, real time counting display ●Support SCPI programming command control ●Interface: USB Device,USB Host,RS-232, Pass/Fail ●Unique digital filter and data recorder function ●Embedded 12 languages,online help,one key storing and one key printing
Application:
1. Electronic circuit design and debugging 2. Electrical circuit function test 3. Inspect instantaneous signal 4. Industrial control and measuring 5. Products quality control 6. Education and training
Specification:

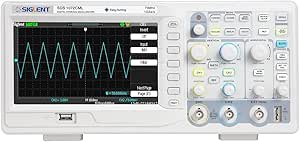

●Model:SDS1072CML ●Bandwidth:70MHz ●Channels:2CH+1EXT ●Real time sampling rate:1GSa/s ●Equivalent sampling rate:50GSa/s ●Memory depth:2Mpts ●Rise time:<5ns ●Input impedance:1MΩ‖17pF ●Time base range: 5.0ns/div-50s/div Scan: 100ms-50s/div ●Vertical sensitivity:2mV-10V/div ●Vertical resolution:8bit ●Trigger source:CH1,CH2,Ext,Ext/5,AC Line ●Trigger types:Edge,Pulse,Video, Slope, Alternative ●Math Operation:+, -, ×, ÷, FFT ●Digital filter:High pass,Low pass,Band pass,Band Stop ●Max input voltage:±400V (DC+AC Pk-Pk),CAT I, CAT II ●Internal storage: 2 groups of reference waveform, 20 groups of setting,10 groups of waveform ●External storage:Bitmap save,CSV save,Waveform save,Setting save ●Language:English,French,German,Russian,Spanish, Simplified Chinese,Traditional Chinese,Portuguese, Japanese,Korean,Italian,Arabic
